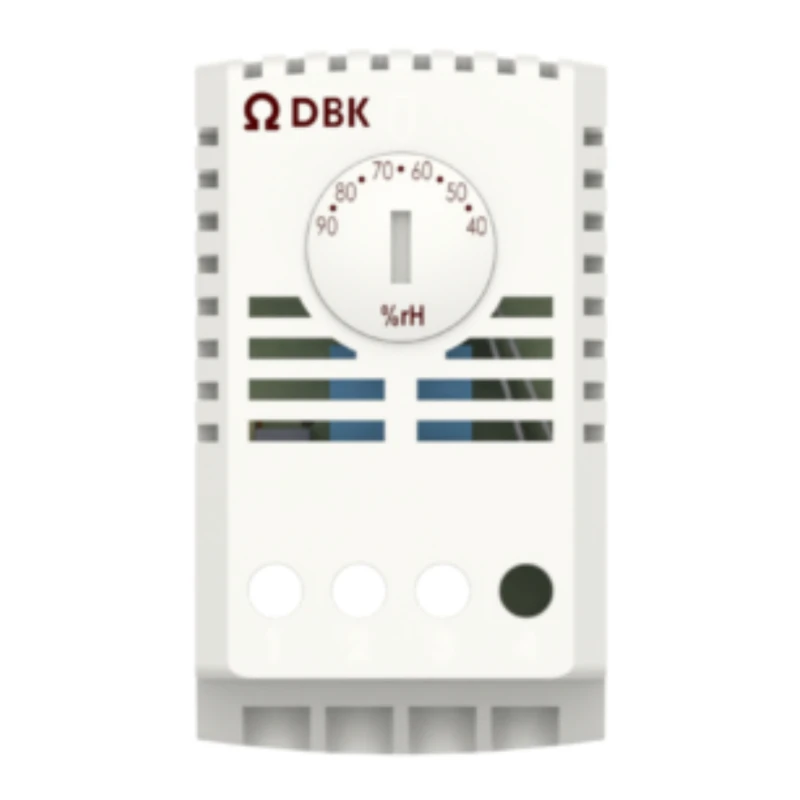

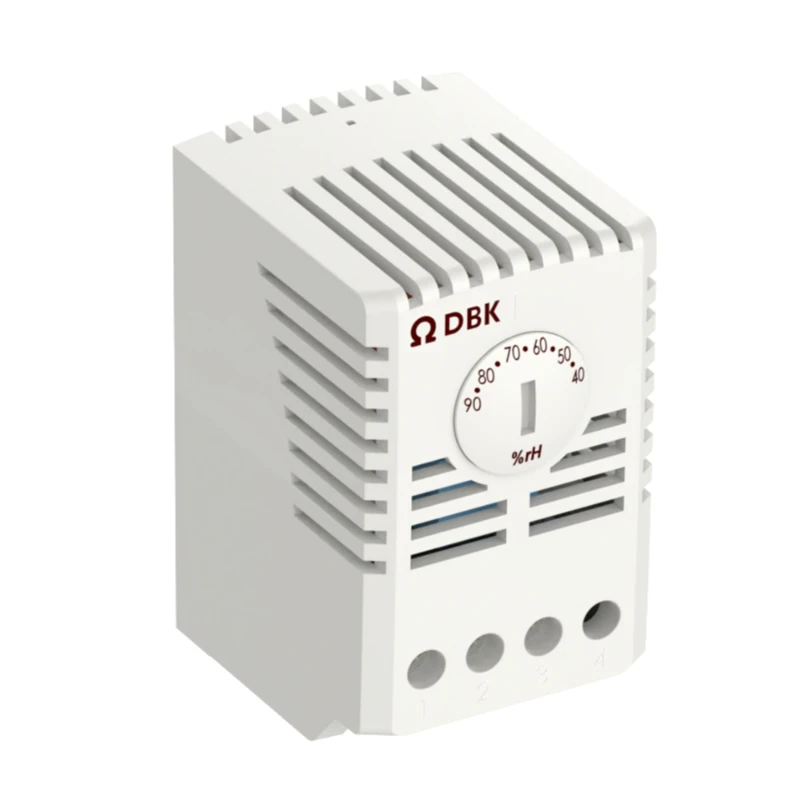

RFHSS Synthetic Fiber Humidity Controller

This device automatically detects relative humidity and directly activates load equipment such as dehumidifiers or heaters to prevent condensation inside enclosures. It is preset to Normally Open (NO) mode for dehumidification; when the humidity level rises, the contact closes to trigger the equipment. It supports a wide input voltage range of 24–230V and allows for humidity setting adjustments in 5% increments. The device is CE and UL certified for safety and compliance.

Product Features

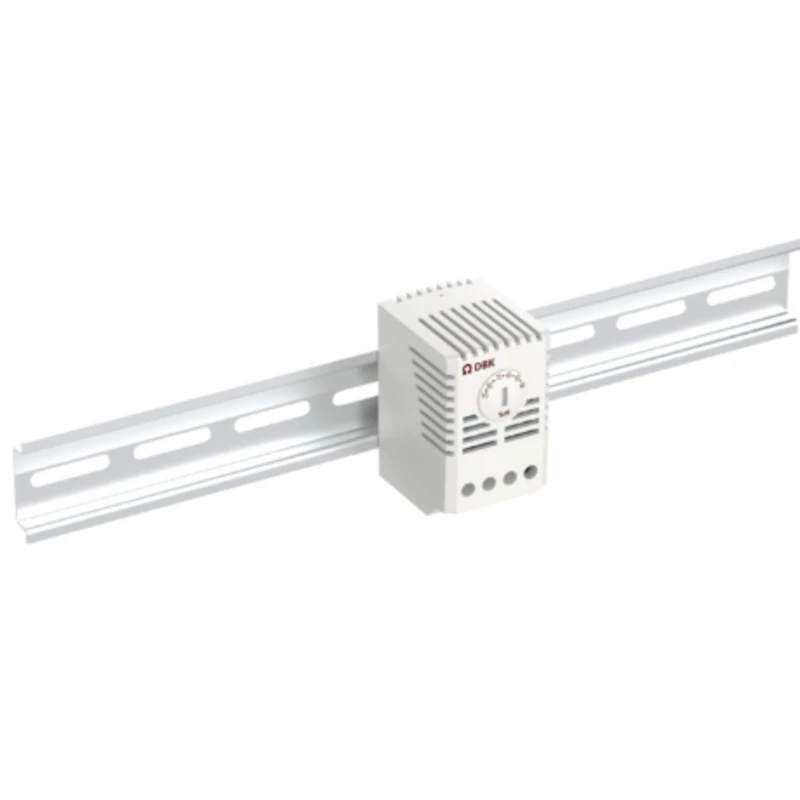

With a settable relative humidity range of 40–90% and a switching differential of 5% RH, this device features a three-pole screw terminal block for AWG 20–14 (0.5–2.5mm²) wiring and a molded housing designed for installation on standard 35mm DIN rails according to EN 60715.

Specifications

Synthetic fiber wet controller	RFHSS
DBK Ordering Number	1070101.01
Humidity setting range	40… 90% RH
Rated input voltage [V]	24 – 230 AC
Humidity setting difference (per level)	5% RH
Mode of contact	1 CO (Change over)
Maximum switching capacity (relay output)	Dehumidification: 5(0.2)A@24V, min100mA Humidification: 2(0.2)A @24V, min 100mA
Sensing elements	Plastic Fiber
Connection	Screw AWG 20 -14 (0.5 - 2.5mm²)
Dimensions (L x W x H) [mm]	51×37×64
Mounting bracket	Built-In clip for DIN rail EN 60715
Enclosure rating	IP30
Operating temperature [°C]	0 to 60
Storage temperature [°C]	--20 to 70
Electrical protection rating	II
enclosure	Plastic grey (RAL 7035)
Weight [g]	56
