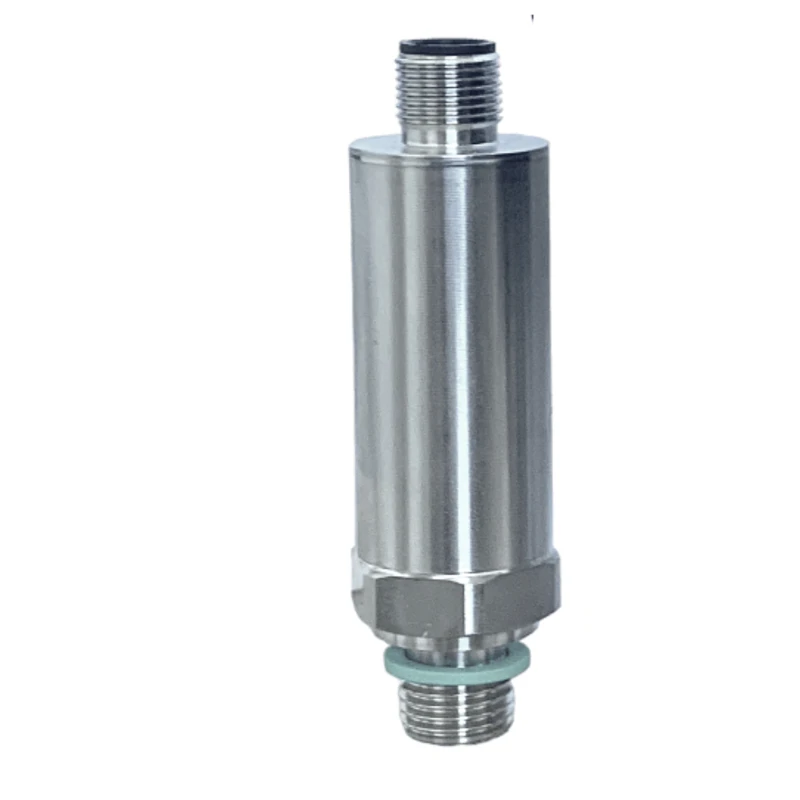

Explosion Proof Pressure Gauge
This product is a stainless steel intrinsically safe pressure sensor designed for hazardous area applications. In addition to their robust construction and excellent price/performance ratio, these products provide reliable pressure measurement solutions for a wide range of applications.
Product Features
1. Suitable for use in hazardous areas
2. Measuring cell with stainless steel integrated structure
3. The measuring unit is designed without welds
4. No O-rings, high overload and burst pressure capability
5. Fast start-up time (< 5 ms)
6. Low power consumption: The voltage output sensor consumes < 10 mA
7. Wide range of operating temperatures
8. Low static and thermal errors
9. Compatible with a wide range of liquids and gases
10. High level of electromagnetic interference (EMI)/radio frequency interference (RFI) protection
11. A wide range of pressure ranges are available
Downloads
Specifications
- Best suited for: High-pressure, corrosive media such as hydrogen
- Pressure range: 10 – 1,000 bar
- Diaphragm material: Steel 316L
- Sensing element structure: with internal diaphragm
- Pressure type: gauge pressure, seal reference pressure
- Certification: CSA
-
Model：PMP-S122.04-ExD
