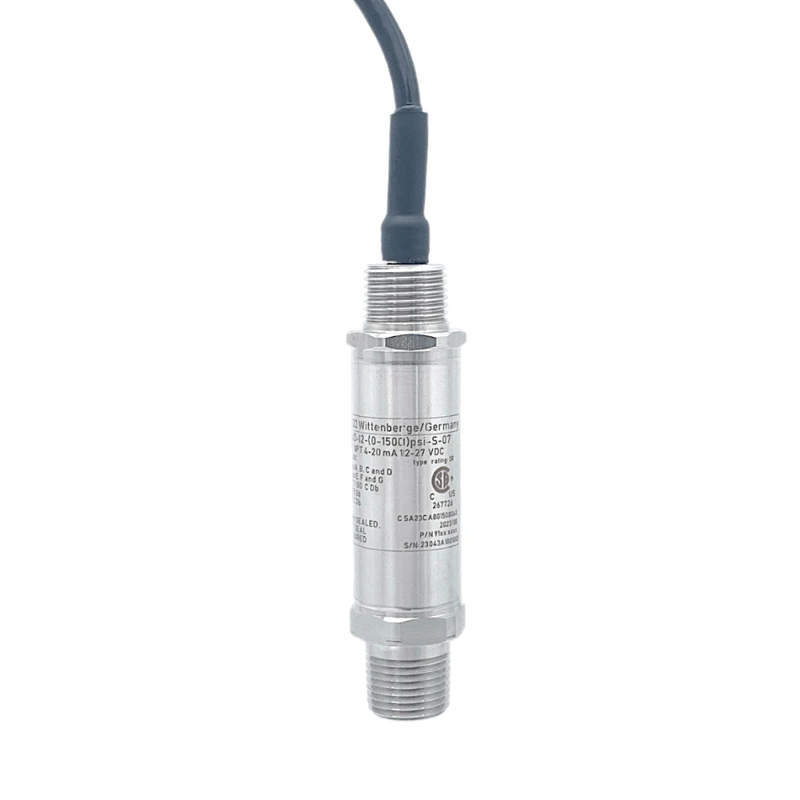

Explosion Proof Pressure Gauge

This product is a stainless steel intrinsically safe pressure sensor designed for hazardous area applications. In addition to their robust construction and excellent price/performance ratio, these products provide reliable pressure measurement solutions for a wide range of applications.

Product Features

1. Suitable for use in hazardous areas
2. Stainless steel integrated measuring cell construction
3. The measuring unit is designed without welds
4. No O-rings, high overload and burst pressure capability
5. Low power consumption: The voltage output sensor consumes < 10 mA
6. Wide range of operating temperatures
7. Low static and thermal errors
8. Compatible with a wide range of liquids and gases
9. High level of electromagnetic interference (EMI)/radio frequency interference (RFI) protection
10. A wide range of pressure ranges are available
11. Factory-sealed design to FM3615 standards
12. High signal accuracy, better than 0.25% of full-scale signals
13. Signal scaling can be done via PC software as required
14. Support tool or PC software for zero setting
15. Signal filtering can be performed via PC software upon request

Downloads

PMP-C122.04-ExD Specification Sheet

Specifications

Best suited for: can be configured online, high pressure, hydrogen and other corrosive media
Pressure range: 10 – 1,000 bar
Diaphragm material: Steel 316L
Sensing element structure: with internal diaphragm
Pressure type: gauge pressure, seal reference pressure
Certification: CSA
