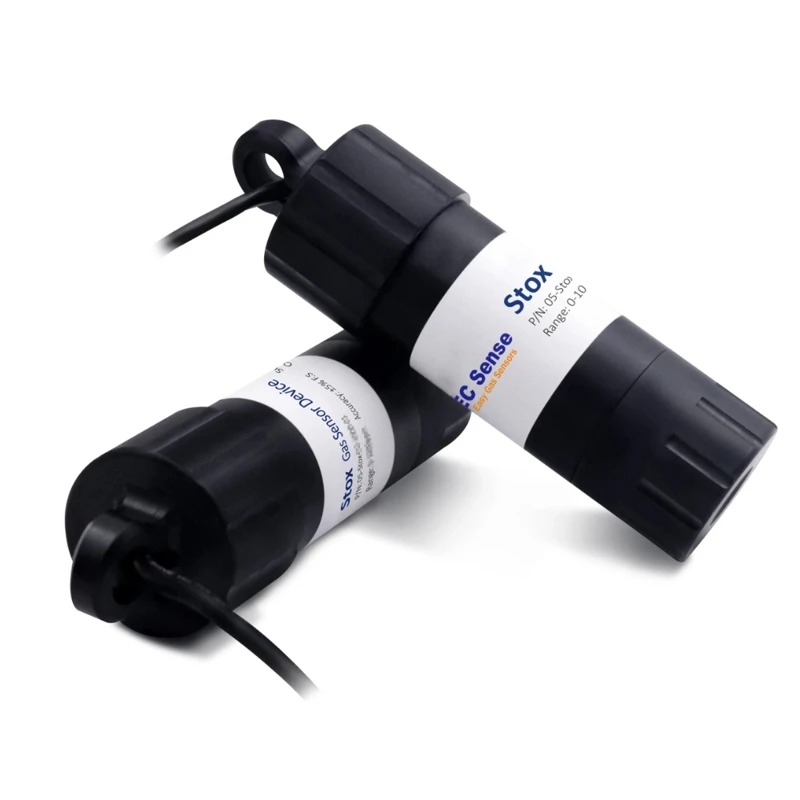

Smart Ammonia Sensor

Smart Ammonia Sensor

Stox Smart Ammonia Sensor Device features a solid polymer electrochemical gas sensor with intelligent algorithms and a built-in microprocessor. It supports 4-20mA two-wire and RS485 Modbus RTU output. Designed for industrial safety, smart home, and IoT applications, it integrates temperature and humidity sensing and includes a self-test function for sensor performance without gas exposure. Each unit is factory-calibrated for real-time use with no warm-up time, storing calibration data in flash memory. Calibration software is available for signal adjustment. The device easily connects to displays, DCS, PLCs, and other systems.

Product Features

1. Detects single gas + temperature + humidity
2. It has calibration function, sensor performance and lifetime test output
3. Fast response time, stable zero return time, no drift
4. Long life
5. Anti-poisoning
6. Immunity to electromagnetic interference
7. Suitable for indoor and outdoor environments, the sensor can operate from -40°C to +55°C
8. Electronic circuit boards have dustproof and corrosion-resistant coatings
9. Integrated safety protection for potentially explosive atmospheres
10. Fast signal settling time after power-on
11. 4-20 mA standard two-wire & RS485 Modbus-RTU output
12. 24V DC power supply
13. Small design
14. RoHS compliant and eco-friendly

Downloads

Specifications

  • Output: 4-20 mA two-wire, RS485 Modbus-RTU
  • Operating voltage: 12 to 24V DC
  • Operating temperature: -40°C to +55°C
  • Humidity: 15% to 95% RH,無condensation
  • Weight: 135 grams
  • Dimensions: 185 x 150 x 108 mm
  • Model:Stox – Smart Ammonia Sensor Device
