Natural Convection Heating Component

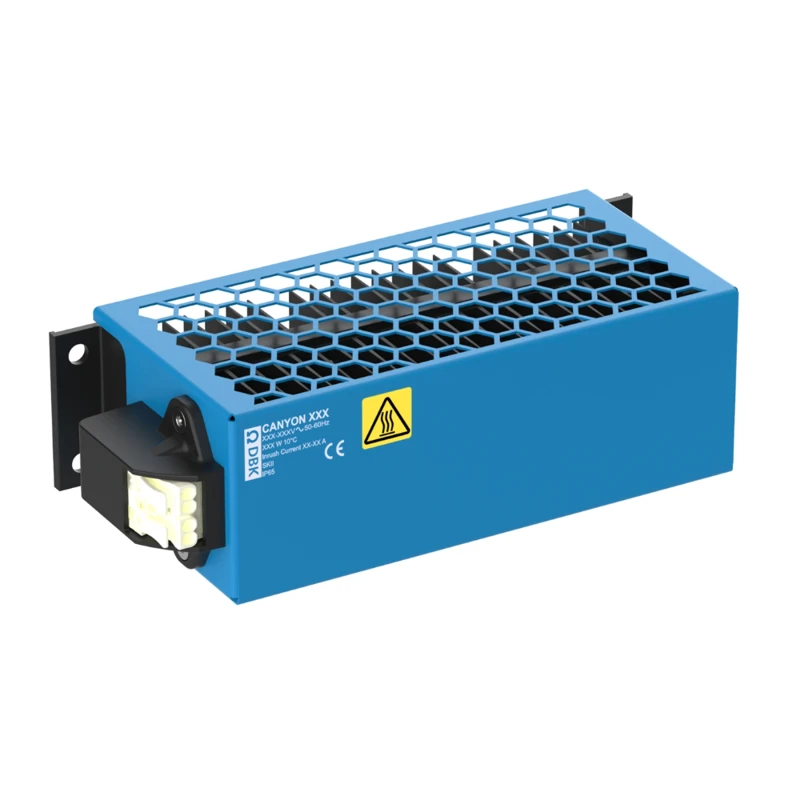

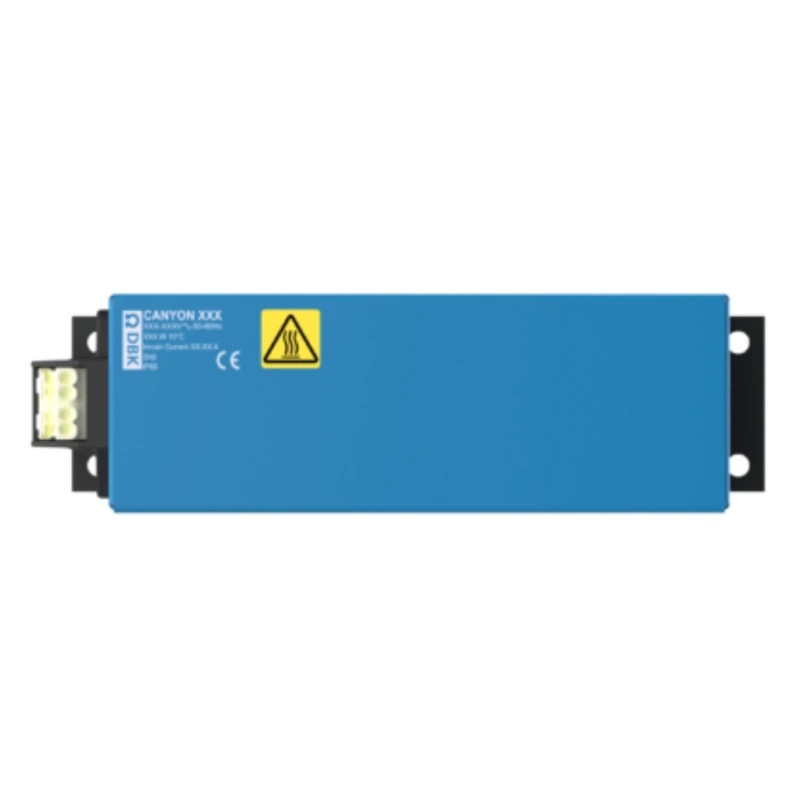

The Canyon is a horizontally mounted natural convection PTC heater. (robust, touch safe, temperature self limiting, no moving parts). It is ideal for signaling and other small outdoor enclosures, and crew area supplimental heating.

產品特色

"Power options 100W – 200W (+5/-10% 230V 10°C)
Voltage options 100 – 120VAC or 220 -240VAC or 48VDC
100W touch safe version (45°C)
Steel outer housing"

檔案下載

Canyon Specification Sheet

規格

gorge	100	200
Rated output power (at 10°C / 50°F) [W].	100	200
Rated input voltage [V].	220–240V AC
Current consumption (230V) [A]	3.5
Wiring	Screwless terminals AWG 20–14 (0.5–2.5 mm²)
Dimensions (L×W×H) [mm]	85 × 205 × 60

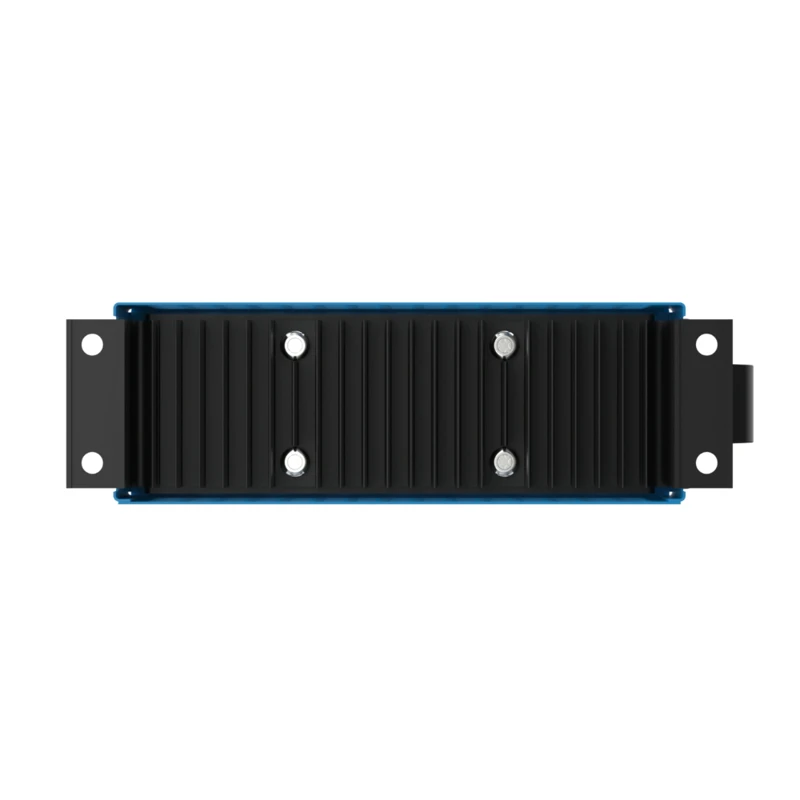

Mounting bracket	4 Ø6.4 mounting holes
Enclosure rating	IP65
Operating temperature [°C]	-40 ~ 70°C
Electrical protection rating	Class II
Maximum temperature	100:45°C (safe contact) 200:65°C
Weight [g]	670
