Natural Convection Heating Component

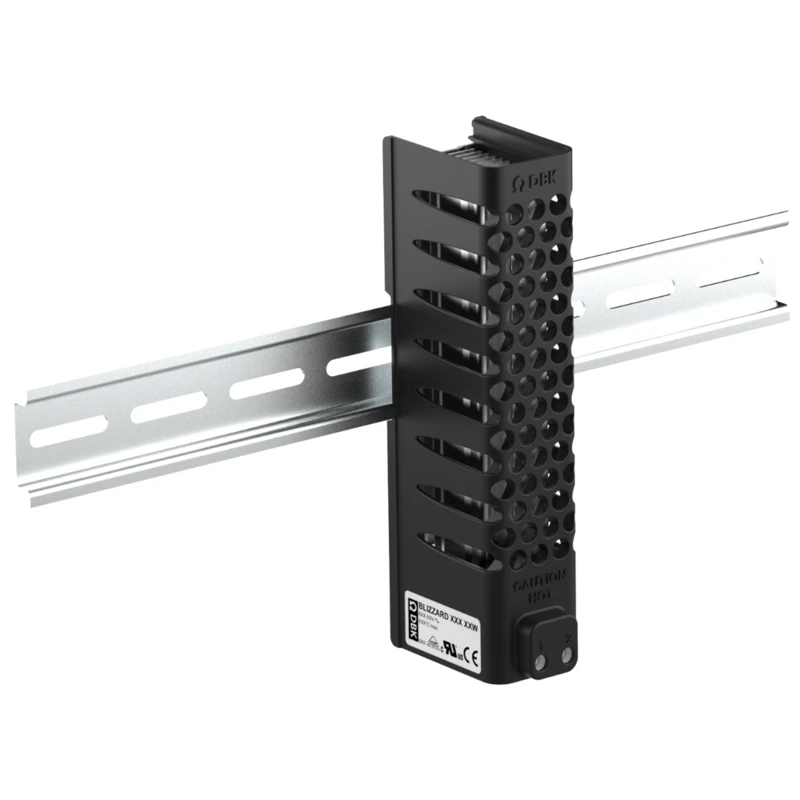

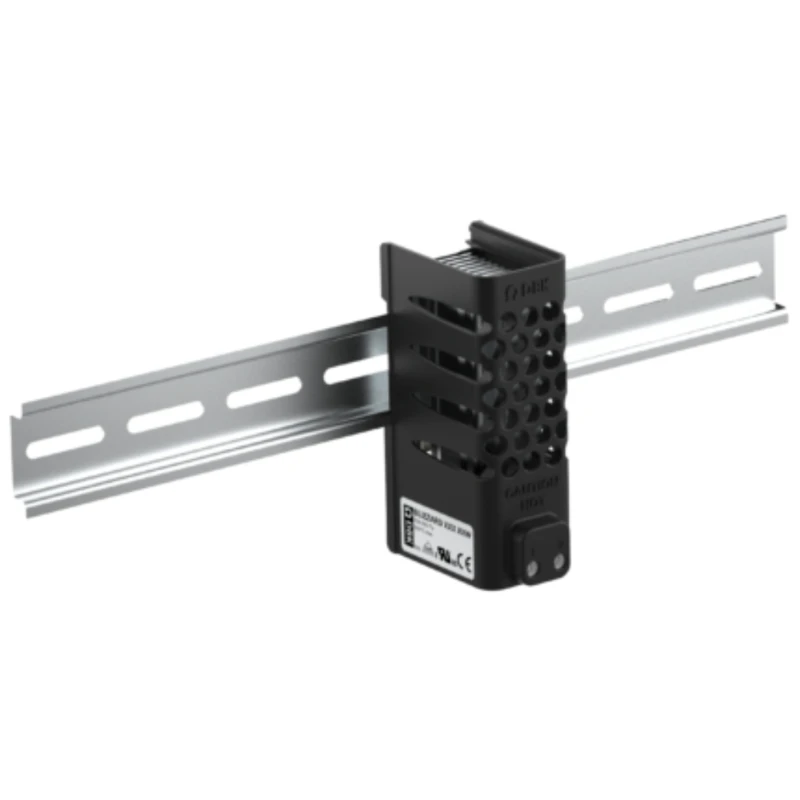

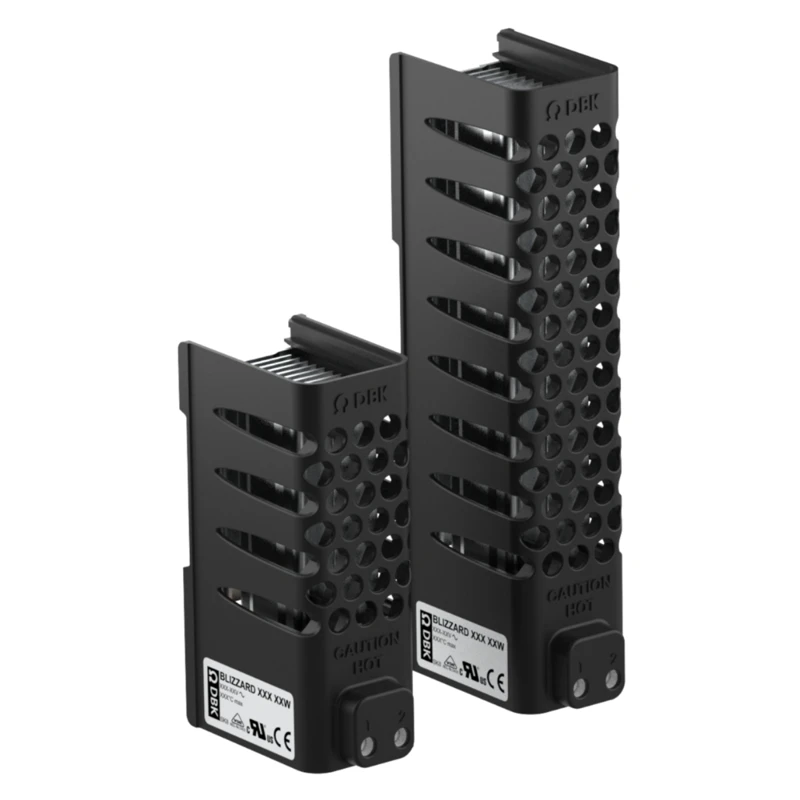

The Blizzard is a vertically mounted natural convection PTC heater. (robust, touch safe, temperature self limiting, no moving parts). It is ideal for small outdoor enclosures such as ticketing and vending machines.

產品特色

1. Power options 30W – 60W (+5/-10% 230V 10°C)
2. Voltage options 100 – 120VAC or 220 -240VAC or 48VDC
3. Plastic outer housing

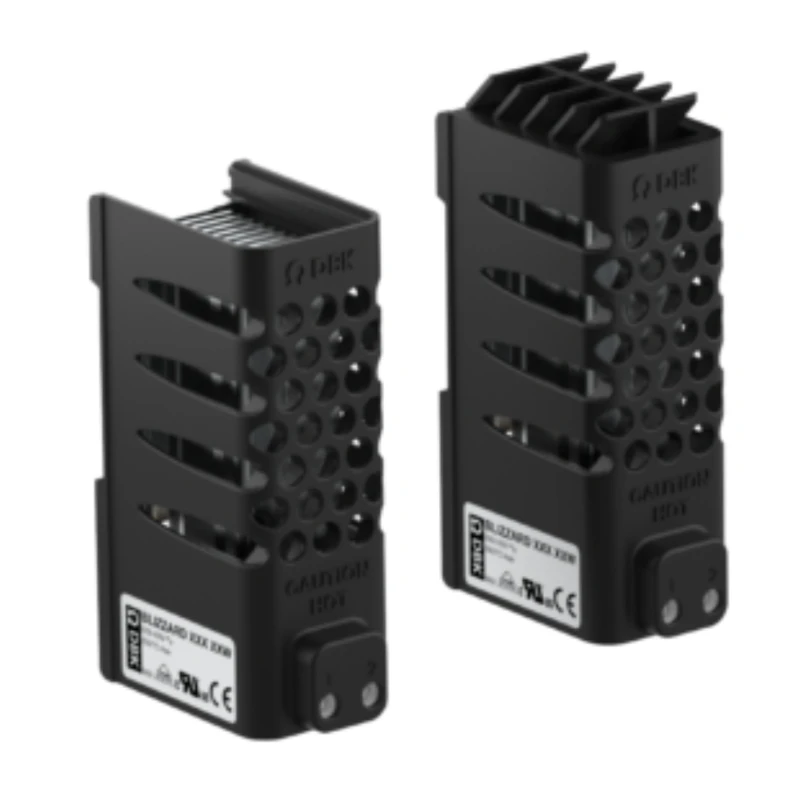

4. Diffuser available

檔案下載

Blizzard Specification Sheet

規格

Blizzard	50H	200H
Rated output power (at 10°C/50°F) [W].	40	65
Rated input voltage [V].	100–240V AC
Current consumption (230V) [A]	4	6.3
Wiring	Screw terminals AWG 24–12 (0.25–3.3 mm²)
Dimensions (L×W×H) [mm]	60 × 35 × 98	60 × 35 × 158
Mounting bracket	DIN rail EN 60715 is applicable
Enclosure rating	IP20
Operating temperature [°C]	-40 ~ 70°C
Electrical protection rating	Class II
Maximum temperature	105°C
Weight [g]	100g	160g
