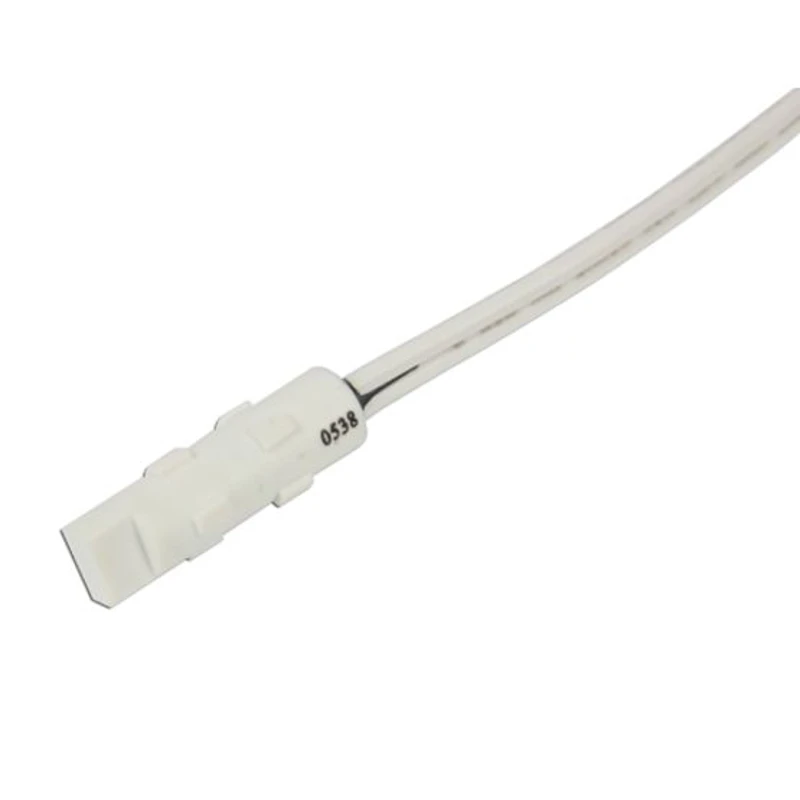

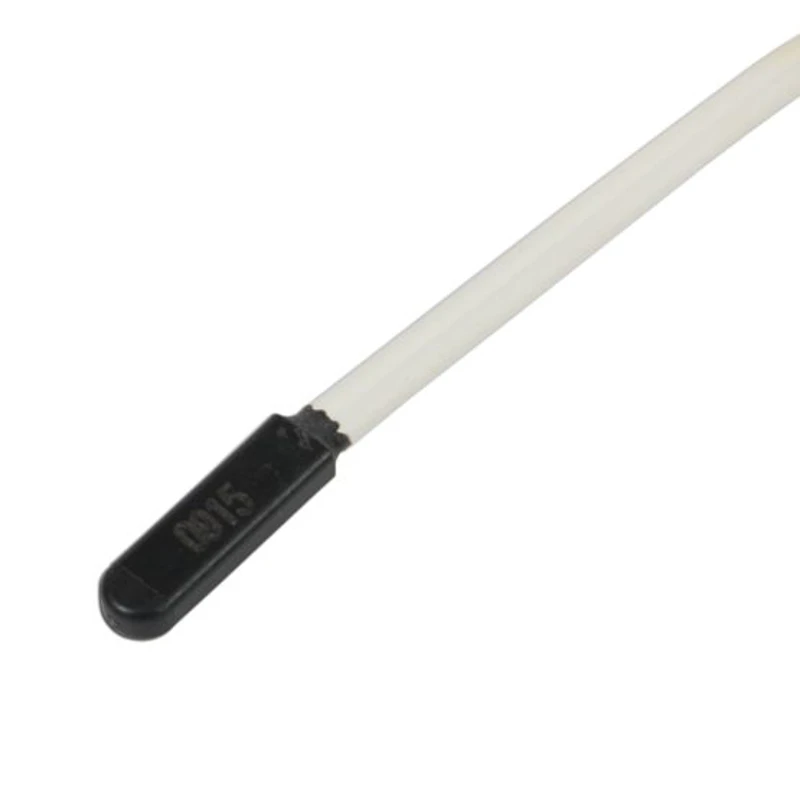

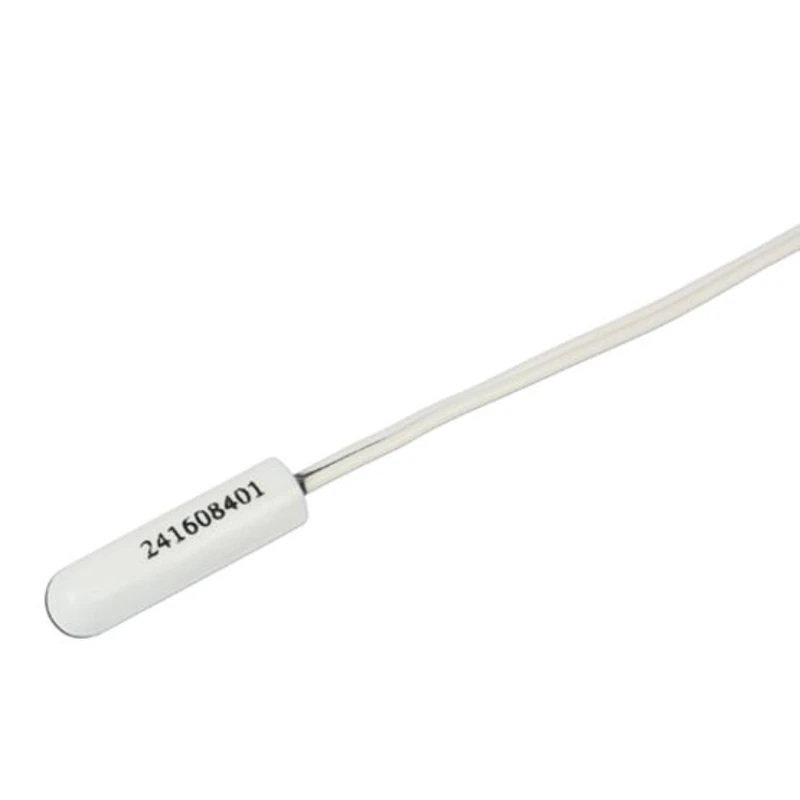

12J NTC Thermistor Temperature Sensor
The 12J NTC Thermistor Sensor features a compact, robust, and cost-effective design that ensures excellent reliability, with outstanding moisture protection and resistance to freeze-thaw cycles. Wire length and color can be customized, and the housing is available in PP, PBT, PPS, or other plastic materials to suit application needs. The internal thermistor element can be selected to meet specific resistance-temperature curves and tolerance requirements.
This sensor is widely used in air conditioning systems, refrigeration systems, heat pumps, and industrial processing systems. It is a versatile and efficient solution suitable for various environmental conditions.
Product Features
1. Suitable for ambient temperature sensing applications.
2. Customizable body length, diameter, and shape to meet various application requirements.
3. Excellent moisture resistance and freeze-thaw durability for harsh environments.
4. Wire length and color can be customized according to customer specifications.
5. Wire ends can be fitted with specified terminals or connectors for compatibility and convenience.
Downloads
Specifications
- Typical thermal response time constant: 11 seconds
(Test conditions: from 25°C air to 85°C stirred water, 63.2% ΔT) - Typical operating temperature range: -40°C to 80°C or -40°C to 105°C (depending on wire rating)
- Temperature exposure test: operated at -20°C and 80°C for 1,000 hours, typical ΔR < 1%
- Dielectric strength: 3750VAC / 0.5mA / 2 seconds
- Stable performance with high accuracy
- Excellent moisture resistance
Applications
- Refrigeration systems
- Freezers
- Floor heating (12J series)
- Heat pumps
- Boilers
- Ambient temperature sensing
-
Model：12J
