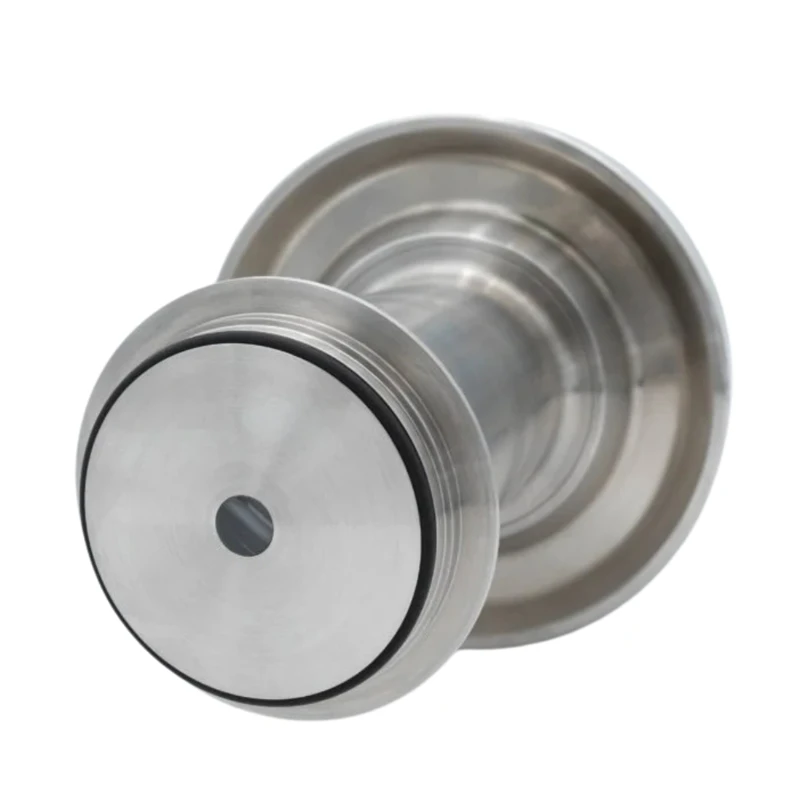

Sanitary certified Inline Digital Refractometer

The EHEDG-certified iPR FS has a measuring range of up to 85 Brix (refractive index 1.5200). As an EHEDG certified product (similar to AAA certification), it is suitable for almost all applications in food and beverage production.

Product Features

1. EHEDG Certified
2. Hygienic design with rounded edges and slotless screws
3. Easy to use and implement, with CIP/SIP support
4. Competitive price/performance ratio
5. Two analog interfaces and two digital interfaces
6. Comprehensive, simple, flexible, and no-compromise process integration
7. Maintenance-free and extremely low maintenance costs

Downloads

iPR FS Specification Sheet

Specifications

User Programmable Ranges: Supports up to 4 temperature-compensated ranges (e.g. refractive index (RI), Brix, honey, etc.)
Refractive index range: 1.3200 – 1.5200 RI
Refractive index resolution: 0.00001 RI
Brix range: 0 – 85 Brix (automatic temperature compensation, range: 10 °C – 50 °C)
Brix resolution: 0.01 Brix
Precision:
• Refractive index: ± 0.00014 RI
• Brix: ± 0.1 Brix
Temperature accuracy: ± 0.2°C
Temperature resolution: ± 0.01°C
Process temperature range: 0 °C to +90 °C
Ambient temperature range: -10 °C to +50 °C
Process contact materials: sapphire, Swiss stainless steel, PEEK
Maximum pressure: 10 bar (1 MPa)
Power requirements: 24 V DC < 75 mA (range: 20 V – 28 V)
Light source: 589 nm LED
Analog outputs: 2 x 4 – 20 mA analog outputs
Digital outputs: two digital limit switches (up to 1 A); One serial communication (RS232, RS485, configurable adjustable) or USB
Display: As an accessory, it can be placed next to the iPR or used several meters away
Software: Configurator, including serial output, analog output, measured value monitoring, and storage
Process connection: Choice of VariVent-Inline (Tuchenhagen) or APV-Inline (APV)
Other options: Swing Scanning Unit (Cleaning Prism)
Dimensions: 256.6 mm x 136 mm (L x D)
Weight: 3790 g
