Gas Detection Calibration Station

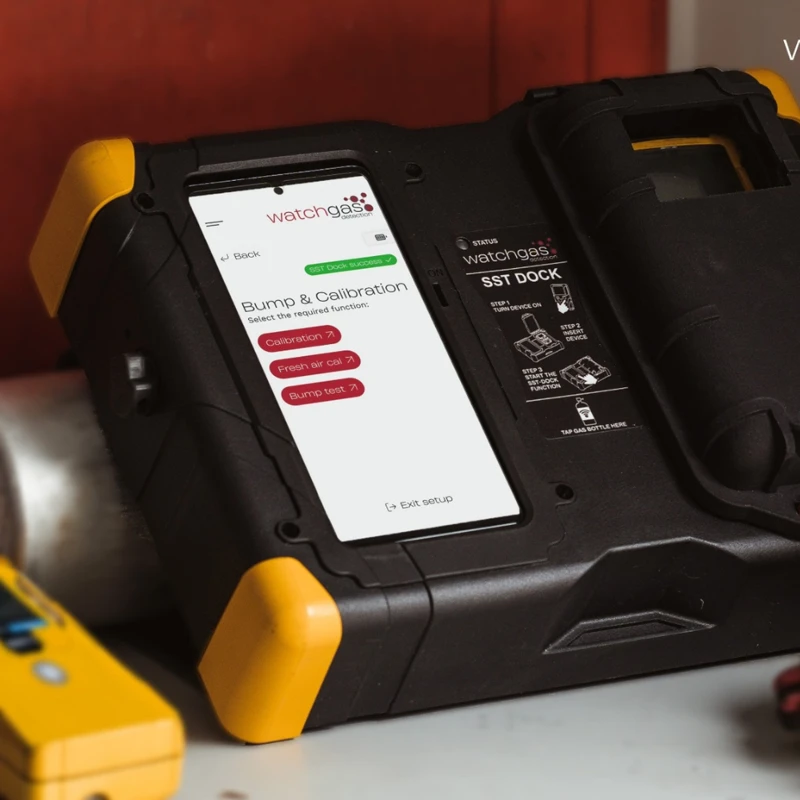

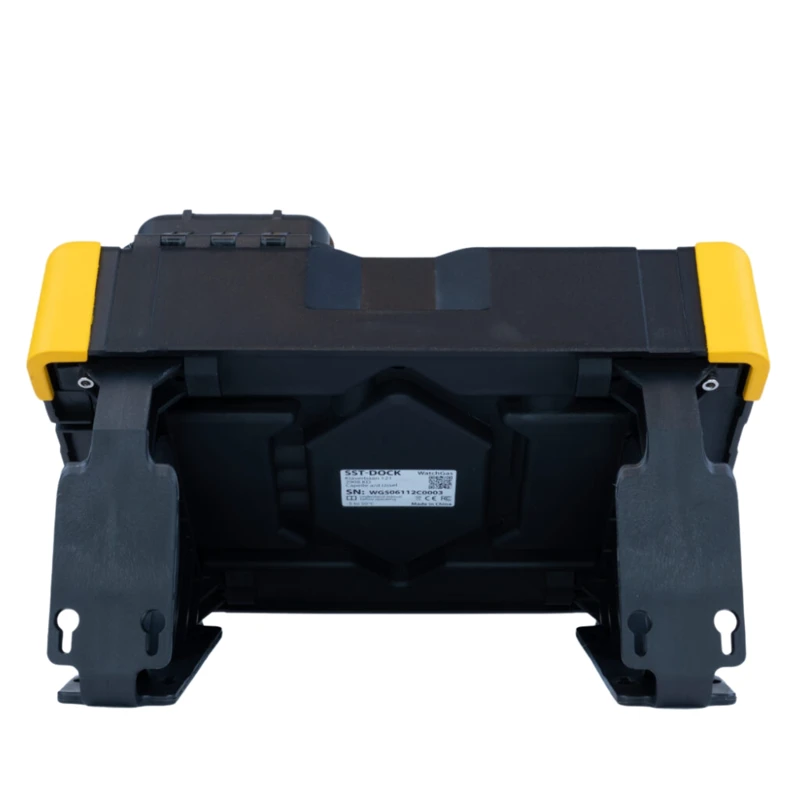

SST Dock is a calibration and configuration station for managing gas detector fleets, compatible with SST-1, SST-4 (all models), SST-4 Pump, and SST-5. It reduces infrastructure costs by offering a single docking solution. SST Dock can operate as a standalone unit or connect to WatchGas’ cloud software for full fleet visibility, compliance notifications, and data analysis. Flexible mounting options include tabletop, wall, or portable case, supporting up to 100 calibrations per charge. The rugged design allows customization from basic bump testing to advanced, networked monitoring.

Product Features

1. Easy setup
2. Rapid crash test
3. Connectivity features
4. Platform-based design
5. Low gas level alert
6. Diverse mounting options

Downloads

SST Dock Specification Sheet SST Dock Specification Sheet2

Specifications

Dimensions (L x W x H): 28 x 21 x 10 cm (11 x 8.2 x 4 in)
Weight: 1.8 kg (63.5 oz)
Operating temperature range: +5°C to 40°C
Humidity range: 0% to 90% RH
Storage temperature: 0°C to 50°C
Power supply: 12 V 1.5 A
Built-in real-time clock: Yes, updating
Data storage: It can support more than 1 year of operating data
Connectivity: Wi-Fi, mobile internet, BLE (Bluetooth Low Energy) – connect to the cloud and the WatchGas app

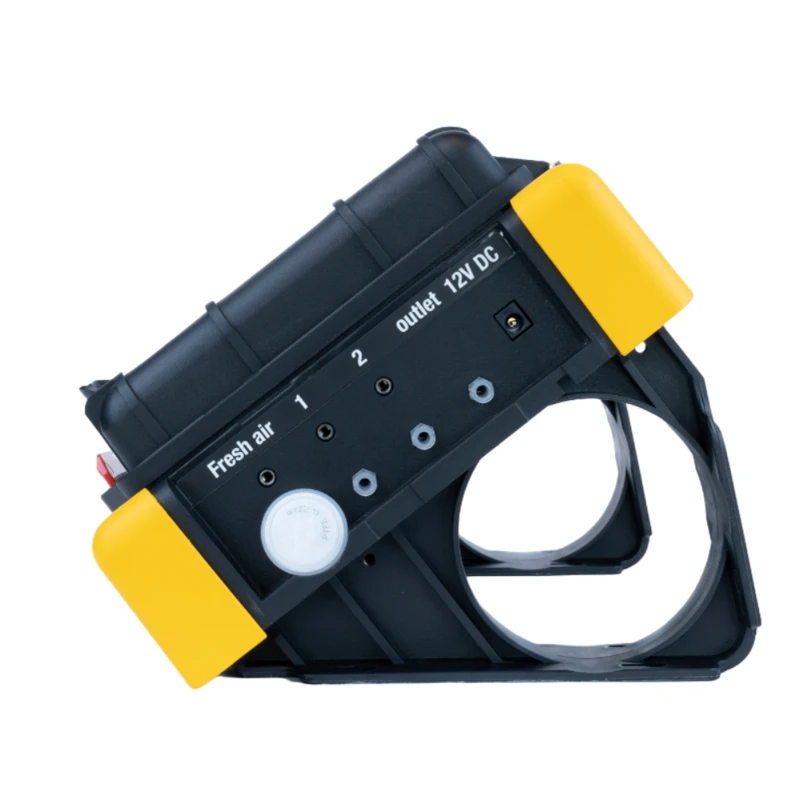

Gas intakes: fresh air intake, two gas intakes, and one exhaust port
Test functions: impact test, correction (optional), device configuration and data download, and support device alarm and visual LED test
Device compatibility: One module is compatible with the SST series
Certifications & Approvals:
• Electromagnetic Compatibility Directive (EMC) 2014/30/EU
• Low Voltage Directive 2014/35/EU
• U.S. FCC Part 15
• EU RoHS Directive 2011/65/EU
Warranty: 2 years
