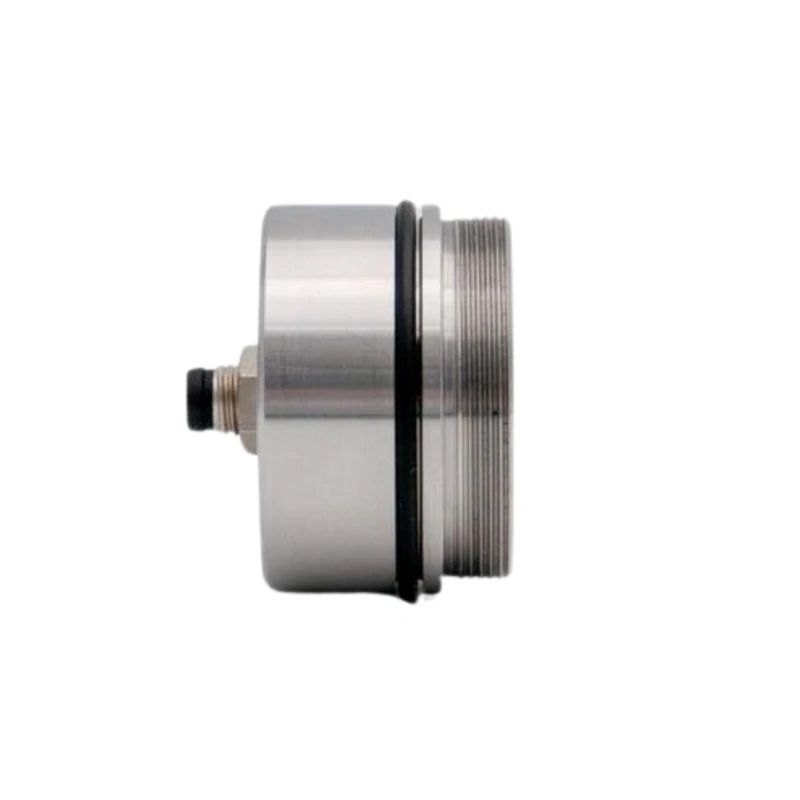

Inline Ethylene Glycol Concentration Meter

The inline sensor iCS is a compact and easy-to-install concentration sensor designed for measuring antifreeze concentrations such as glycol. The sensor can also be easily adapted to your specific product needs, providing stable and reliable measurement results with low maintenance.

Product Features

1. The compact and lightweight size easily adapts to tight spaces
2. Simple, flexible and no-compromise process integration
3. The technology is easy to implement and provides low-cost integration and maintenance
4. A long-standing and proven technology, it is particularly suitable for glycol concentration monitoring

Downloads

iCS EG Specification Sheet

Specifications

Measuring range: 0 – 55 % ethylene glycol (EG)
Resolution: 0.1 %
Accuracy:
• ±0.3 % EG range 0-5 % in the range 10–30 °C
• Accuracy ±2 % at 0-55 % of EG range in the range 0–50 °C
Operating temperature range: -10 °C to +50 °C
Process pressure: max. 4 bar
Interface: RS485 Modbus
Dimensions: 45 mm x Ø 40 mm
Weight: Approx. 250 g
