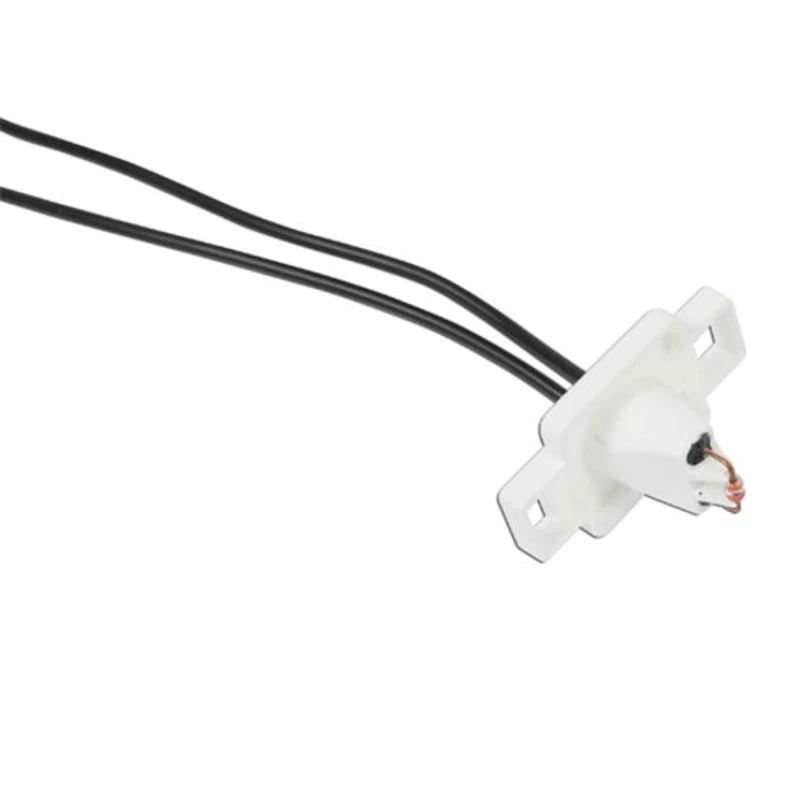

76J NTC Thermistor Temperature Sensor

The 76J NTC Thermistor Sensor provides fast thermal response and features a flange-mount design that is durable and cost-effective. Its housing is made of PBT plastic or other customer-specified materials. The thermistor element can be customized to meet specific resistance-temperature curves and tolerance requirements. The 76J is widely used in dryers, ventilation systems, and other air-based applications requiring quick response.

Product Features

1. Customizable body length, diameter, and mounting options to meet various application needs.
2. Optional moisture protection systems available for different environmental conditions.
3. Housing made of PBT plastic, with other material options available upon request.
4. Quick-connect terminal design enables fast and easy wiring.
5. Stable performance with high accuracy.
6. Suitable for surface-mounted ambient air temperature sensing applications.

Downloads

76J Specification Sheet

Specifications

Typical thermal response time constant (varies by wire rating):
(Test conditions: from 25°C air to 85°C stirred water, 63.2% ΔT)
Metal: 1 second
Plastic: depends on plastic thickness
Typical operating temperature range: -40°C to 125°C
Dielectric strength: 1500VAC / 0.5mA / 2 seconds (other specifications available upon request)
Stable performance with high accuracy
Excellent moisture resistance
