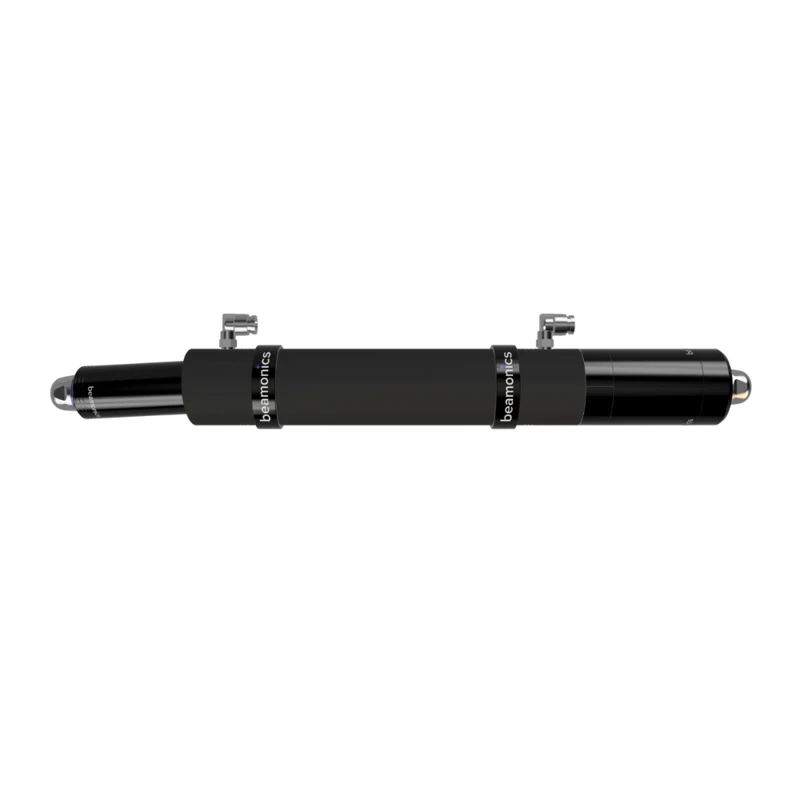

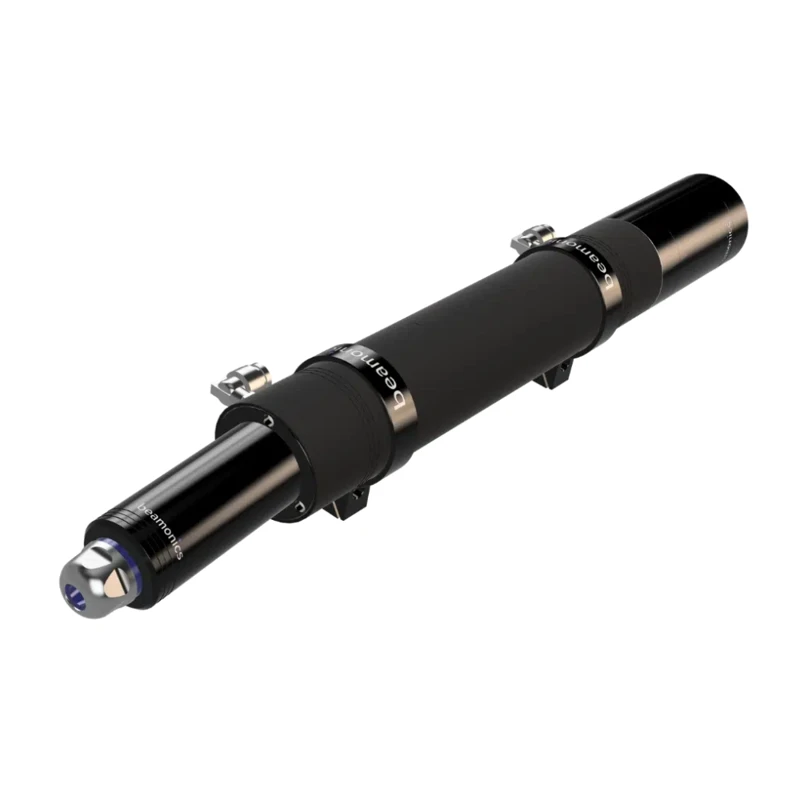

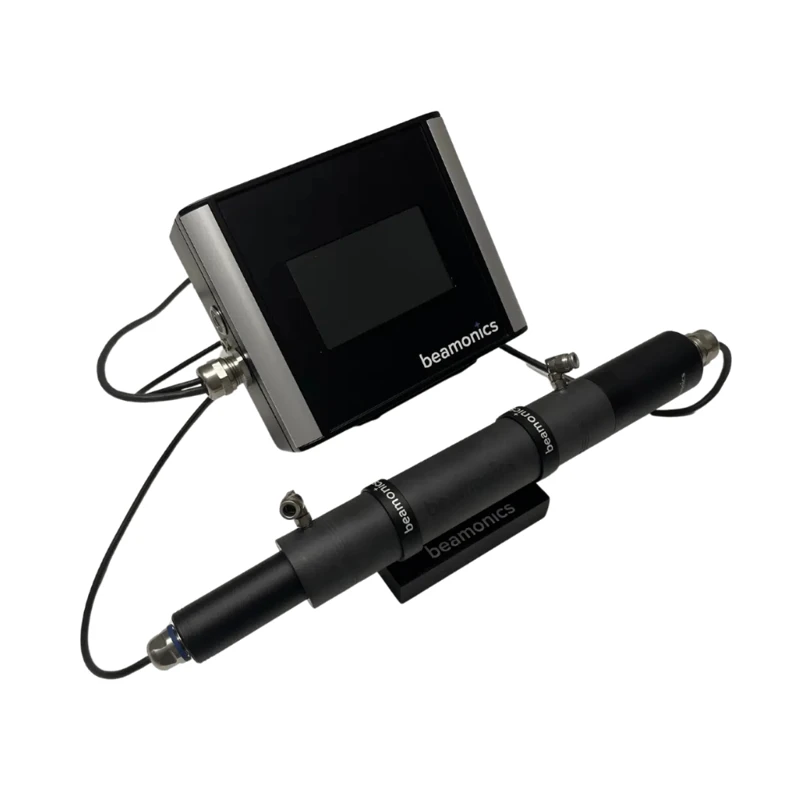

Extractive Laser Gas Analyzer

BeamCell™ by Beamonics offers fast, accurate real-time gas analysis (PPB level) for extracted or sampled gases. Its controlled environment enables parallel flow analysis away from hazardous areas. Durable and easy to integrate with PLCs and computer systems, BeamCell™ supports cost-effective multi-point sampling without calibration or maintenance unless notified.

Product Features

1. Accurate gas analysis
2. Measure very low concentrations
3. Turnkey, easy-to-use solution
4. No calibration or maintenance is required
5. Analyze results in real-time and complete measurements in an instant
6. IP68 rated mechanical construction
7. Corrosion-resistant materials are used in the circulation room

Downloads

BeamCell Specification Sheet

Specifications

parameter	symbol	minimum	Typical	maximum
Ascending slope time	TR	100 µs	120 µs	240 µs
Temperature setting stability			0.1 mK
Laser current	IR	0 mA		400 mA
Number of channels for data sampling			1
Data sampling resolution			24-bit
Data Sampling Noise (V)		0.1 µVrms*
Data Sampling Noise (ADU)			0.1 *
Low Light Intensity Limit (10 s)			1 nW
Gas connection threads			G1/8
Gas line size		6 mm / 8 mm
