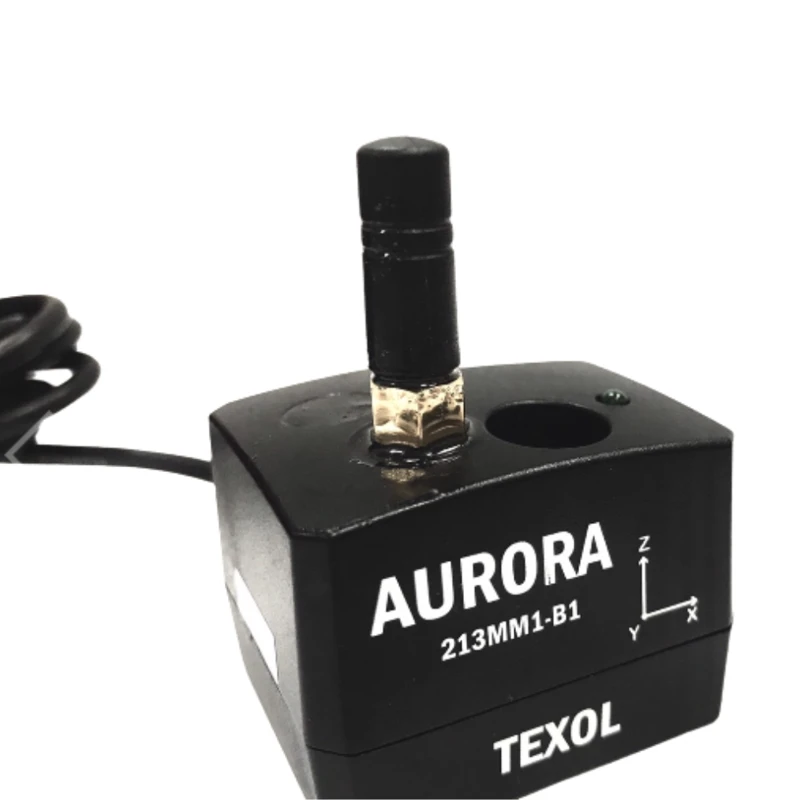

This triaxial RS485 transmission intelligent vibration temperature sensor with medium to high bandwidth response range is equipped with a medium and high frequency vibration accelerometer, a temperature sensing chip, a high-performance computing unit, and an RS485 data transmission module. The sensor can extract the health status characteristics of mechanical equipment in real time, judge the status, and upload the equipment health information to various data collection systems through various RS485 to wired or wireless gateways to achieve comprehensive monitoring and analysis.

Product Features

1. Triaxial
2. Measuring range: +/- 16 g
3. Bandwidth range: 5 Hz - 5,000 Hz
4. Monitoring mode: continuous monitoring/software trigger monitoring/hardware trigger monitoring
5. Feature operation: time domain signal characteristics / frequency domain energy characteristics / order energy characteristics, feature definition and alarm upper limit can be set
6. Bluetooth communication
7. Power supply: 12-24 VDC
