Differential Pressure Metering
A series of high-precision differential pressure transmitters for industrial applications
Designed to meet the need for high accuracy over a wide temperature range for measuring differential pressure in air and liquids. These differential pressure transmitters are widely used in pneumatics, hydraulics and process engineering. The fully digital solution enables the measurement range to be scaled from 1:1 to 1:10 depending on the linear and differential pressure.
The differential pressure transmitter supports zero point correction, range adjustment, and measurement filtering, as well as pressure interface polarity switching via an additional service box and PC software, providing flexibility to meet a wide range of application needs.
Product Features
1. High media tolerance
2. Microprocessor signal conditioning
3. High signal accuracy, better than 0.5% of full-scale signals
4. Signal scaling via PC software is supported
5. Support tool or PC software for zero setting
6. Signal filtering function (customizable)
7. Dry sensors for high-pressure and harsh environments
Downloads
Specifications
- Best suited for: Configurable in-line, high pressure, gas and liquid
- Pressure range: 3 – 1,000 bar
- Diaphragm Material: Steel 17-4PH
- Sensing element structure: with internal diaphragm
- Pressure Type: Gauge Pressure, Seal Reference Pressure, Absolute
-

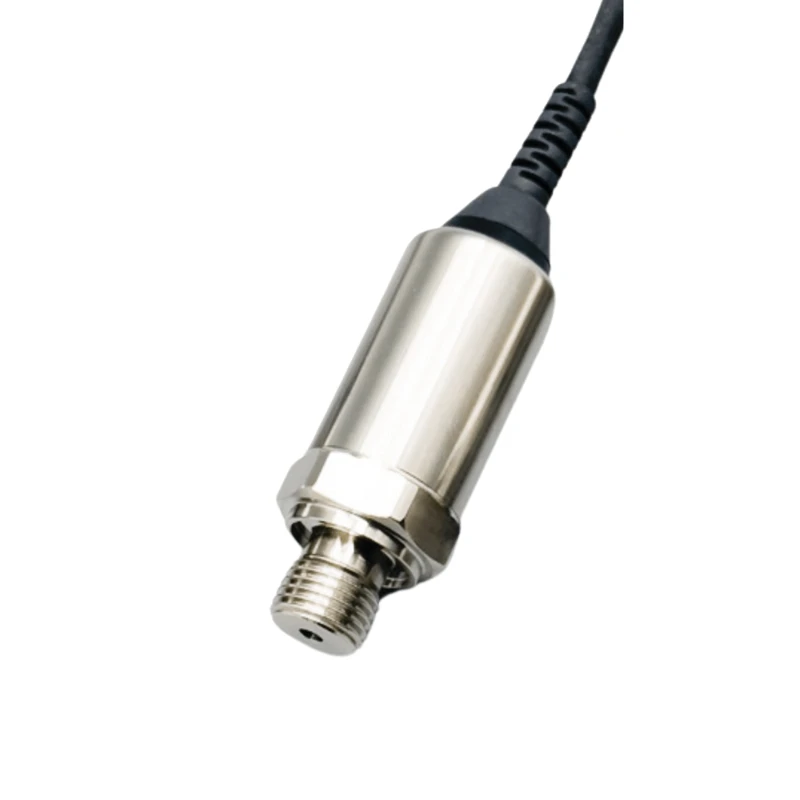

Model：PMP-D111
