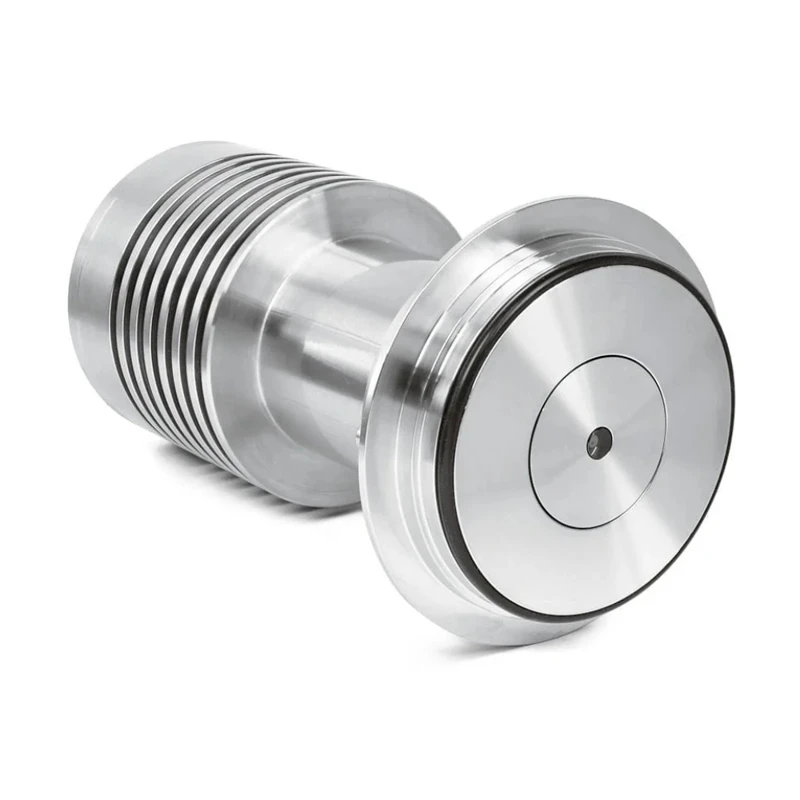

Compact Inline Digital Refractometer

SCHMIDT + HAENSCH's universal process refractometers are designed to be robust. The iPR C2 is an ideal all-rounder for the measurement of liquid concentration in a wide range of industrial applications. This compact, inline process refractometer enables real-time industrial measurements under a wide range of conditions and quality control from start to finish with your production process. Automatic temperature compensation is available for the Brix scale, while other scales can be programmed. The excellent price/performance ratio is another reason for the success of the process refractometer.

Product Features

1. The compact and lightweight size easily adapts to tight spaces
2. Easy connection via Ethernet (LAN) and Wi-Fi (Wireless LAN).
3. With smart designs and materials, it is able to withstand process conditions up to 65°C and aggressive liquids
4. Simple, flexible and uncompromised process integration through analog and digital interfaces
5. The technology is easy to implement and provides low-cost integration and maintenance
6. Proven technology that has been proven for a long time in a wide range of applications

Downloads

iPR C2 Specification Sheet

Specifications

Measuring range: 1.3320 – 1.4209 RI
Resolution: 0.0001 RI
Brix measuring range: 0 – 50 Brix (automatic temperature compensation 10°C – 50°C)
Brix resolution: 0.05 Brix
Refractive Index Accuracy / Brix Accuracy: ± 0.0002 RI / ± 0.15 Brix
Temperature accuracy: ± 0.2°C
Temperature resolution: ± 0.01°C
Process temperature: -10°C to +65°C
Ambient temperature: -10°C to +45°C
Contact medium material: YAG (yttrium aluminum garnet); Stainless steel, optional PTFE
Maximum pressure: 10 bar (1 MPa)
Power supply: 24 V DC < 75 mA (20 V – 28 V)
Light source: 589 nm LED
Analog output: 4 – 20 mA (active output)
Load impedance: 300 Ω
Digital outputs: RS232, RS422 (switchable) and USB
Display: Optional, mounted next to the iPR or used remotely
Software Functions :
• Sequence output settings
• Analog output settings
• Measured value monitoring and data storage
Mounting interface (optional): VariVent-Inline (Tuchenhagen) or APV-Inline (APV)
Other Options: Prism Cleaning Device
Dimensions: 150 mm x 65 mm (L x D)
Weight: 1000 g
