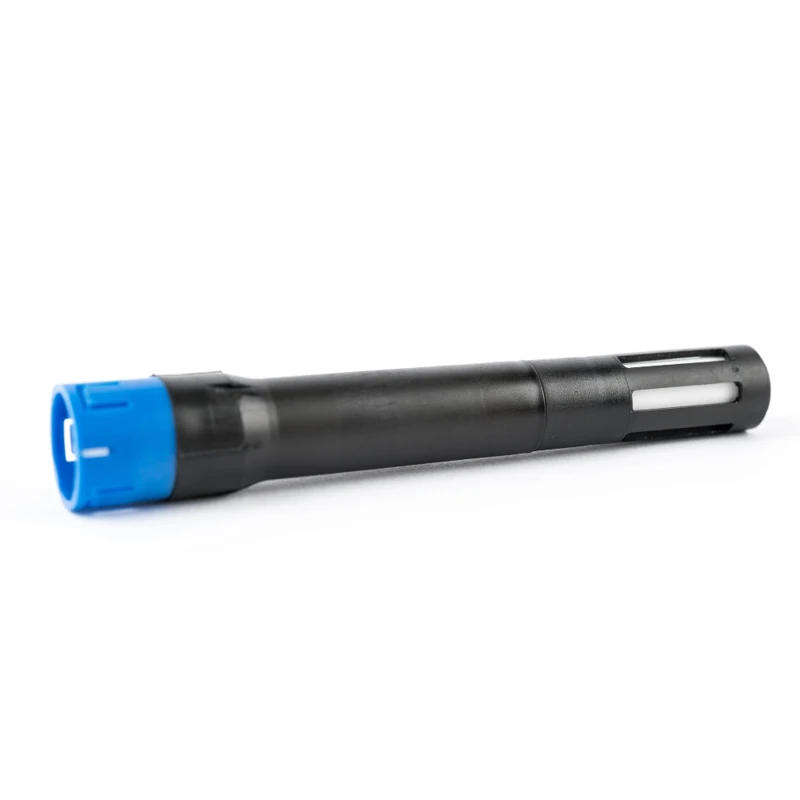

Temperature and Humidity Sensor

Capacitive measurement technology suitable for standard climate control and monitoring.
Digital humidity and temperature sensor equipped with a capacitive humidity sensor.

Product Features

1. Precise measurement
2. Cost-effective universal sensor
3. Calibration data and serial number stored directly in the nSens
4. Compatible with all nLink transmitters and nSens connection cables
5. Plug-in sensor for quick and easy replacement
6. Supplied with factory calibration certificate

Downloads

nSens-HT-EIH Specification Sheet nSens-HT-EIH Specification Sheet2

Specifications

Measurement Parameters：	Humidity	Temperature
Measurement Range：	0…80% rH	-20°…+80°C
Measurement Accuracy：	+/-1.5% (typ)	+/-0.3K
Calibration Method：	13-point full-range calibration	2-point full-range calibration
