Remote Laser Gas Analyzer

Remote Laser Gas Analyzer

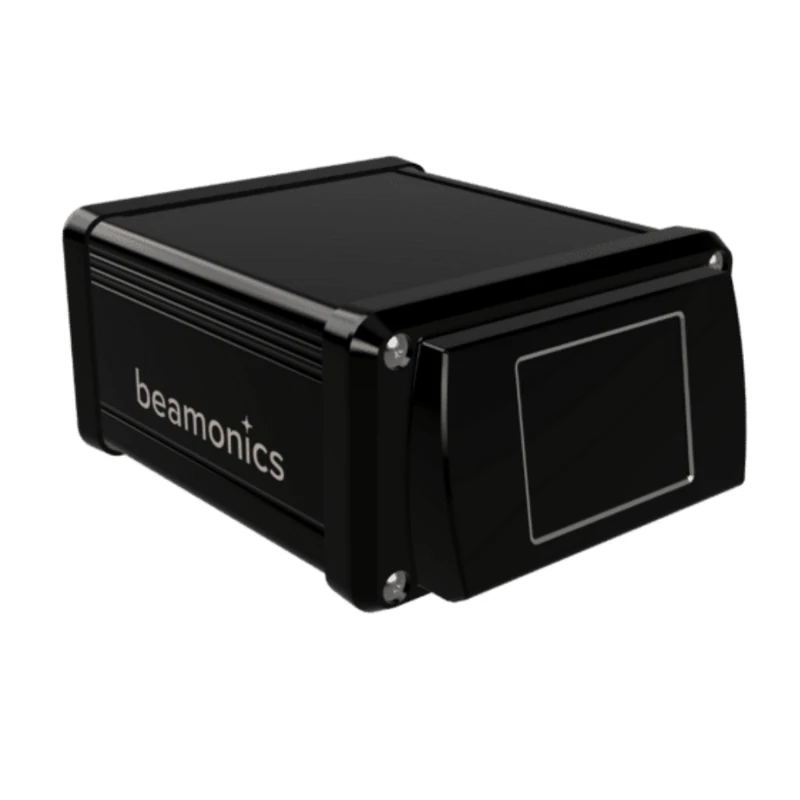

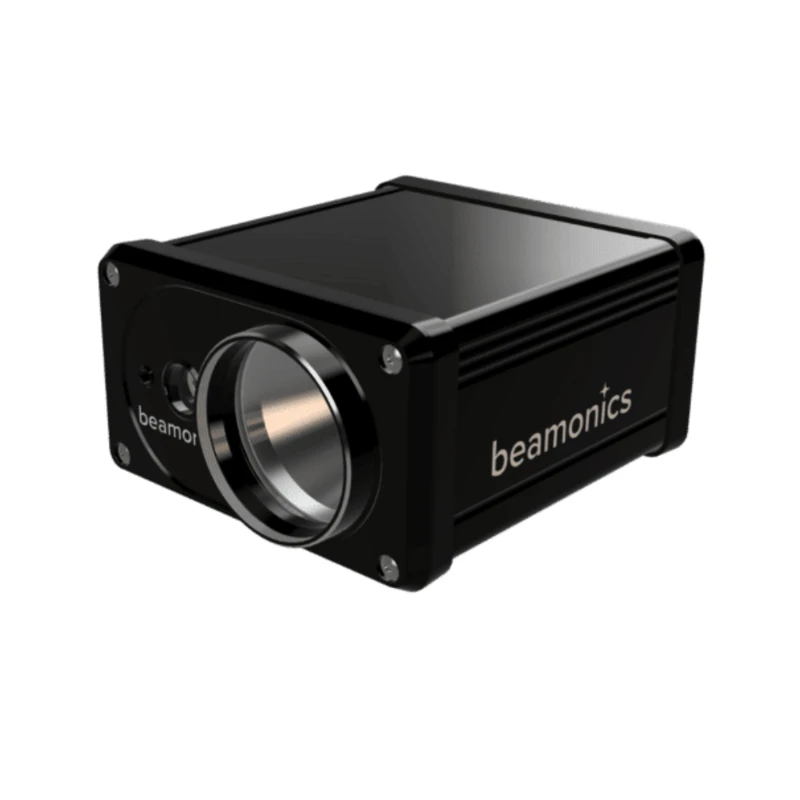

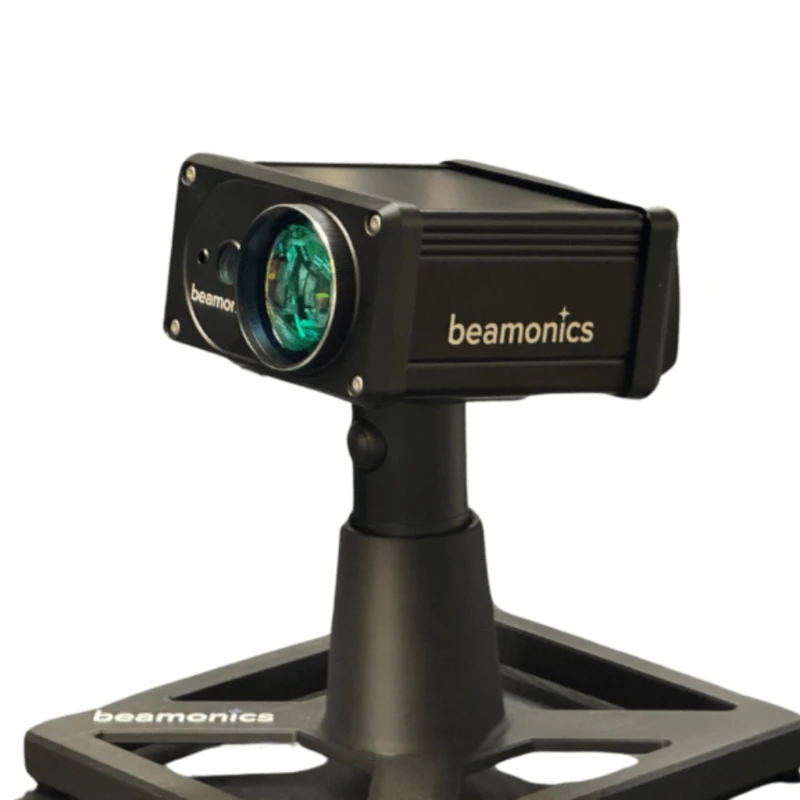

BeamSight™ by Beamonics is the world’s smallest handheld gas detection device, offering real-time, remote gas analysis with low energy consumption. Fully plug-and-play, it integrates easily into existing systems, requires no calibration or maintenance, and supports long operation times. Its compact design allows mounting on robots or drones for mobile monitoring, detecting a wide range of gases from trace levels to near saturation.

Product Features

1. Remote analysis of gas leaks
2. Movable and fixed settings
3. Compact design, lightweight and easy to carry
4. The detection range is up to 30 meters, and the detection range is up to 100 meters with reflector
5. Innovative, compact and easy to use

Downloads

Specifications

parameter

symbol

minimum

Typical

maximum

Detection distance

R

0.2 m

30 m

100 m*

External supply voltage

Vin

9 VDC

12 VDC

24 VDC

Power Consumption**

P

4.0 W

4.6 W

5.0 W

Weight (fixed installation)

mf



0.7 kg



Dimensions (fixed installation) (l × w × h).

sf

147 mm × 111 mm × 84 mm



Weight (battery-powered)

mb



1.0 kg



Dimensions (battery-powered) (l × w × h)

Sb

147 mm × 111 mm × 184 mm



for battery life

tb



5 hours



as temperature

Top

-10 °C



50 °C

  • Model:BeamSight
