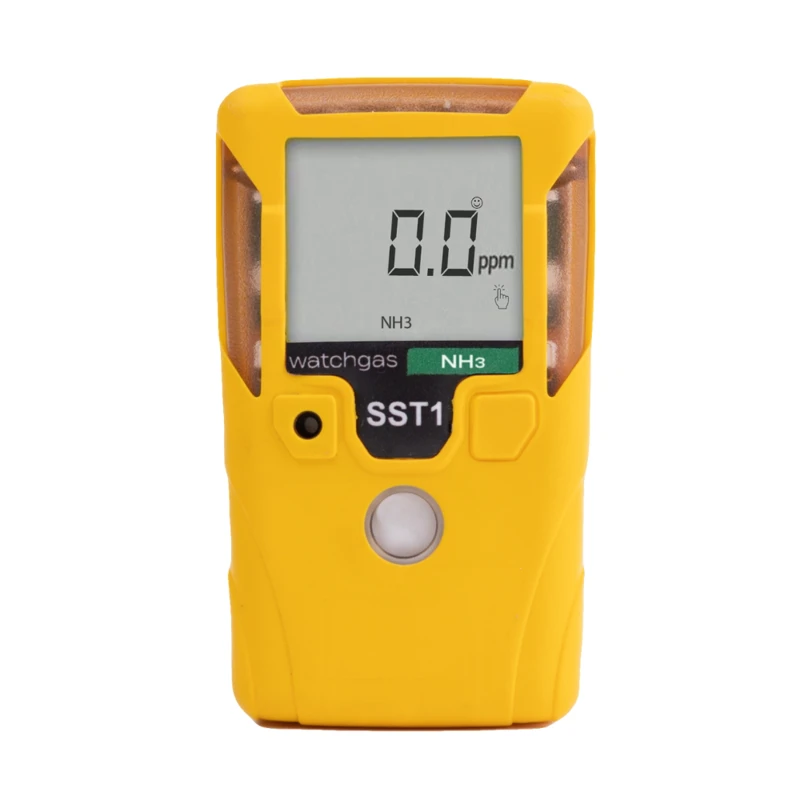

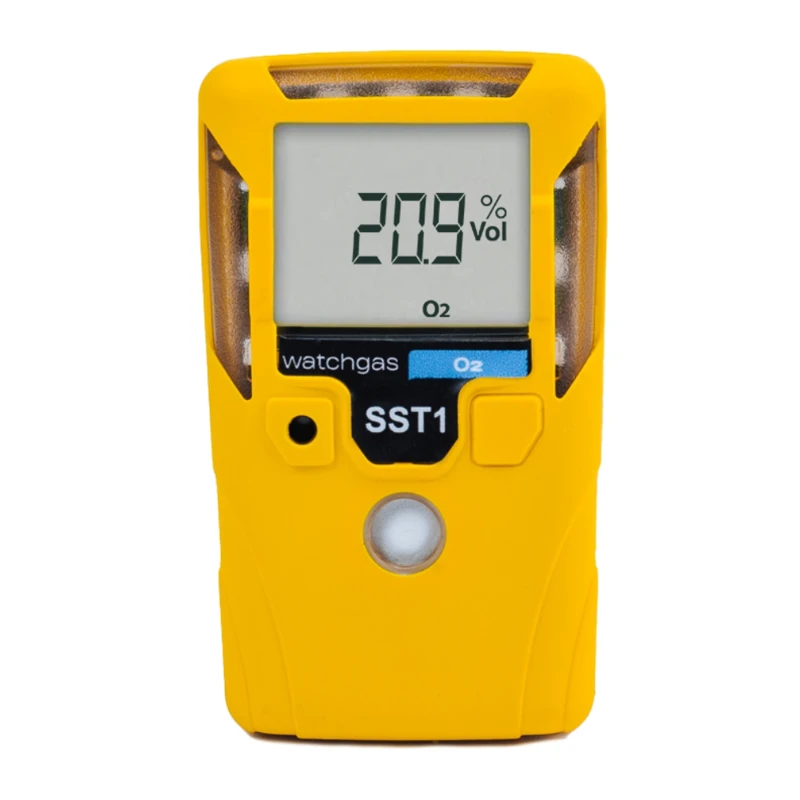

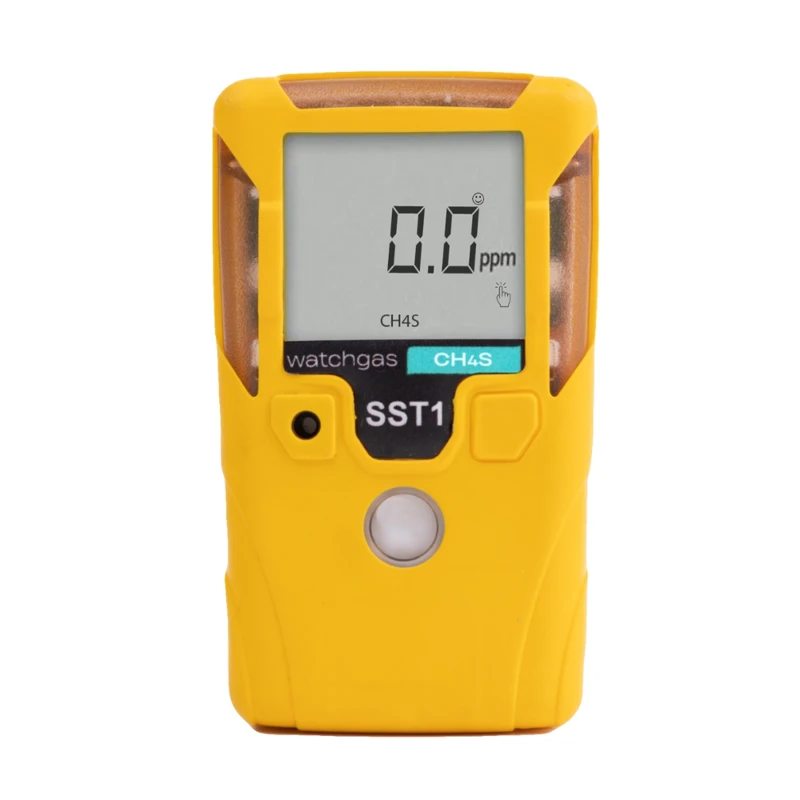

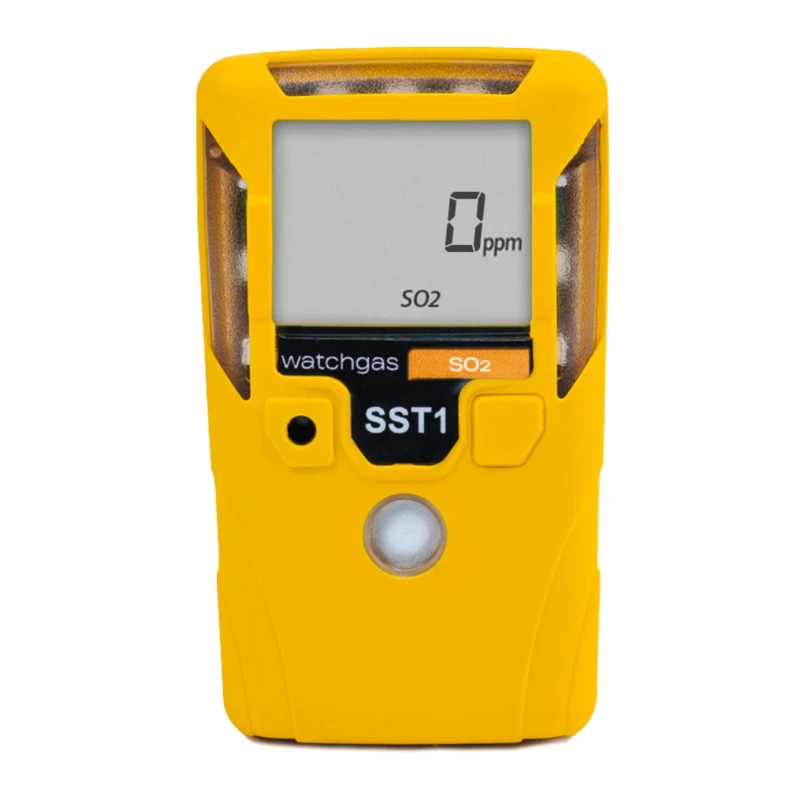

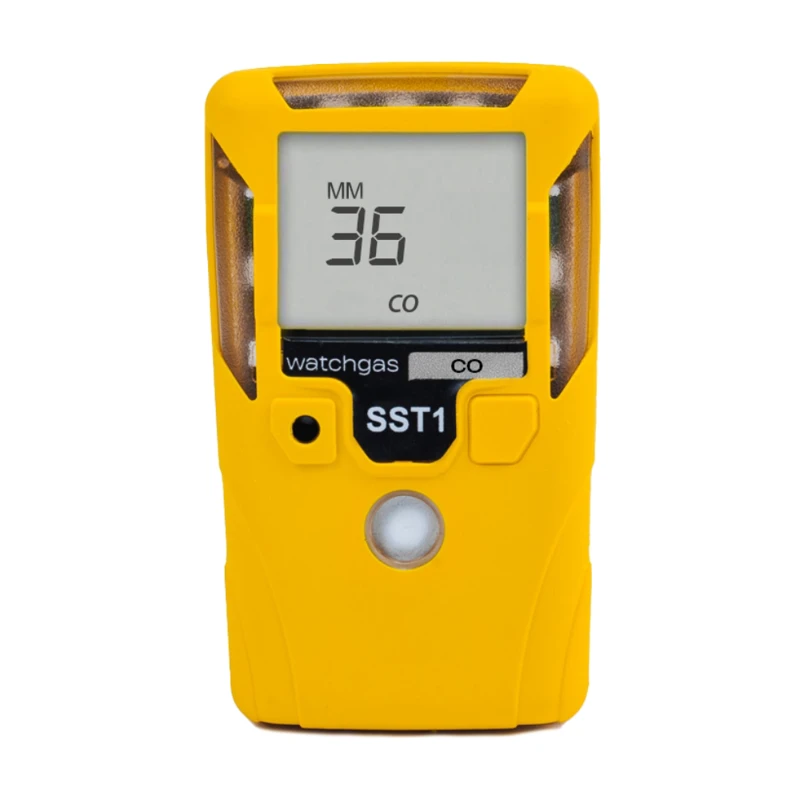

Portable Single Gas Detector

SST1 Serviceable offers one of the most cost-effective solutions on the market. Equipped with a replaceable 3-year battery life and solid-state polymer sensor technology, the SST1 is presented in a compact and modular design while maintaining its rugged character. With NFC capability, the SST1 can be easily configured to meet your needs and paired with the WatchGas app. SST1 monitors low, high, short-term exposure limits (STEL) and time-weighted averages (TWAs) to provide real-time indication of the risk of toxic gases and long-term exposure. In addition, the SST1 platform can be scaled to monitor up to 8 different gases, making it the ideal solution for your application needs.

Product Features

1. TWA & STEL Alerts
2. NFC pairing with WatchGas app support
3. 3-year battery life based on alarms
4. Replaceable batteries and sensors
5. Solid-state polymer sensor design
6. Extra-large LCD display
7. External filter design

Downloads

SST1 Serviceable Specification Sheet SST1 Serviceable Specification Sheet2

Specifications

Dimensions: 83 × 49 × 20 mm (3.3 × 1.9 × 0.8 in)
Weight: 88 g (3.1 oz)
Applicable temperature range: CO, H₂S, O₂, SO₂: -40°C to +60°C (-40°F to +140°F) / Other gases: -20°C to +60°C (-4°F to +140°F)
Humidity range: 5 ~ 95% RH (non-condensing)
Response Time (T90):
• H₂S, CO, O₂, PH₃, low range H₂: < 10 seconds
• CH₄S: < 40 seconds
• SO₂, high range H₂: < 55 sec
• NH₃: < 130 seconds
• Other sensors may vary
Battery Life:
• O₂: 2 years
• H₂S, CO, SO₂, NH₃, H₂, PH₃, CH₄S: Up to 3 years, depending on gas alarm conditions
Event log: Store the latest 100 events
Protection level: IP67-68
Communication method: NFC
Shelf life: 1 year
Certifications and approvals: ATEX, IECEX, UKEX II 1 G Ex ia IIC T4 Ga, I M1 Ex ia I Ma 0344 Intrinsic Safety: Cl I Dv 1, Gr A,B,C,D T4, CSA C22.2 NO. 60079-0, CAN/CSA C22.2 NO 60079, UL 61010 Safety Requirements, CAN/CSA-C22.2 NO 61010-1-12, Low Voltage Directive 2014/35/EU, Electromagnetic Compatibility Directive 2014/30/EU
Warranty:
• Instrument: 3 years
• Battery: 2 years (assuming 1 minute daily alarm)
• Sensors: SO₂ 2 years, PH₃ 1 year, NH₃ 1 year, CH₄S 1 year, H₂ 2 years, other sensors: 1 year shelf life, 2 or 3 years warranty after activation depending on device type
