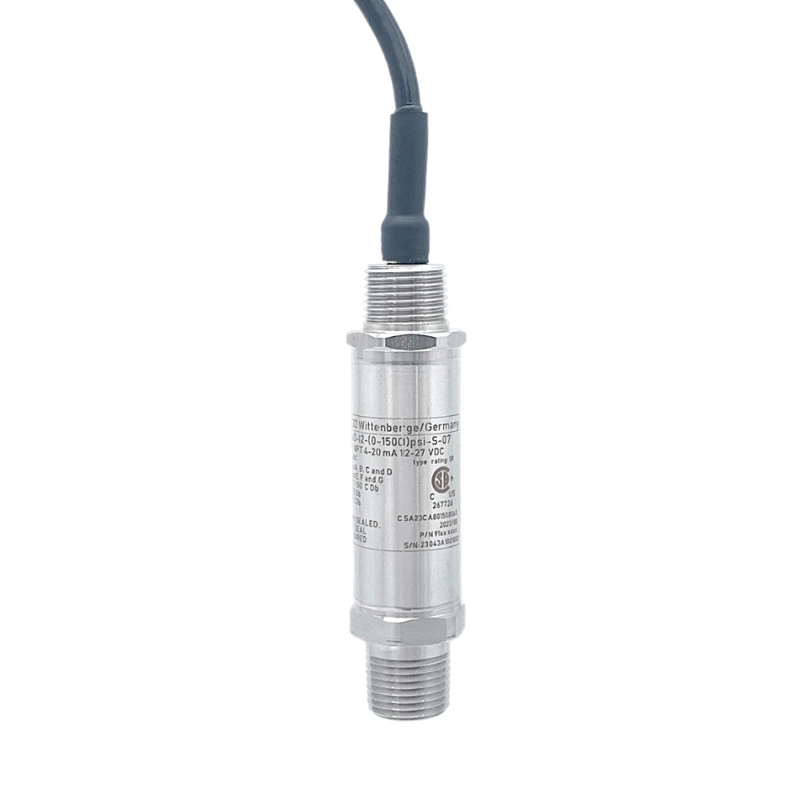

Designed for applications that require high and ultra-high accuracy, this pressure sensor is suitable for a wide temperature range, especially in the chemical, hydraulic, food and pharmaceutical industries. The sensor is specifically optimized for the chemical and physical properties of hydrogen. Available in a pressure range from -1 to 1000 bar for different applications.
The signal processing of the measuring bridge is conditioned by a microprocessor, which effectively compensates for the characteristics of the pressure unit. The CIT series supports zero point correction, range switching, and measurement filtering, and can be made and configured via an additional service box and PC software.

Product Features

1. Innovative, all-in-one stainless steel measuring unit with patented dual-chip technology (P2P)
2. High media resistance, no internal seals, no weld design
3. Compact design, high integration density
4. Microprocessor signal conditioning
5. High signal accuracy, better than 0.25% of full-scale signals
6. Signal scaling can be achieved via PC software
7. Zero setting can be done with tools or PC software
8. Signal filtering function (support customization)
